> Product

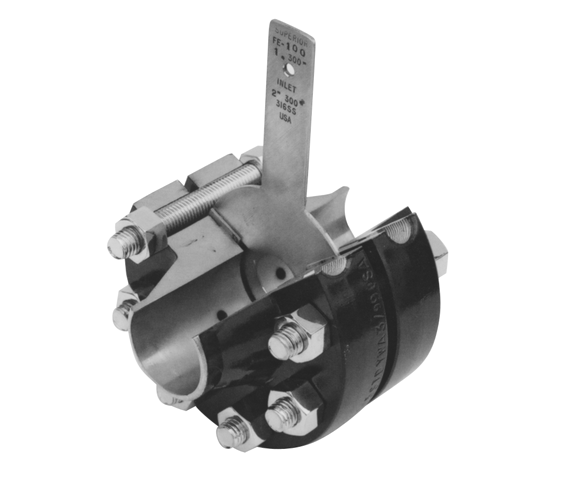

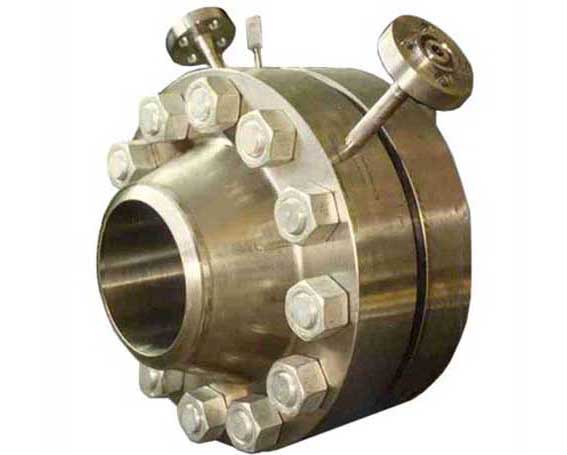

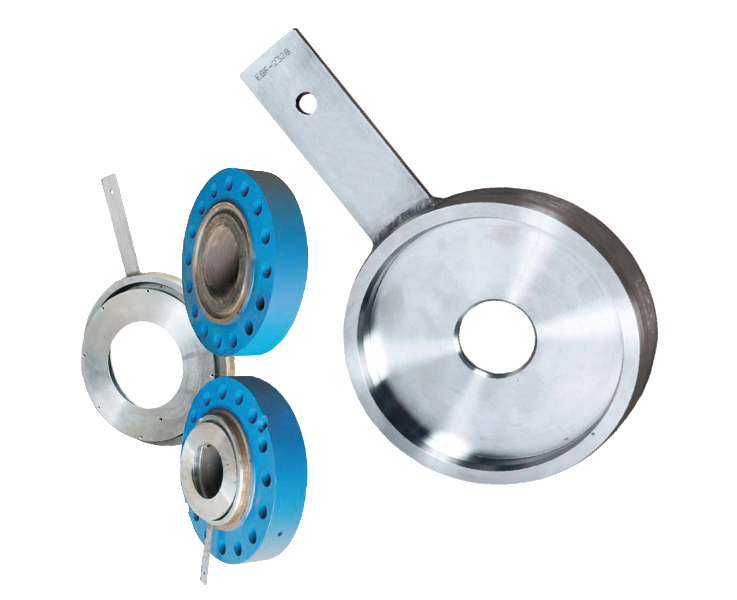

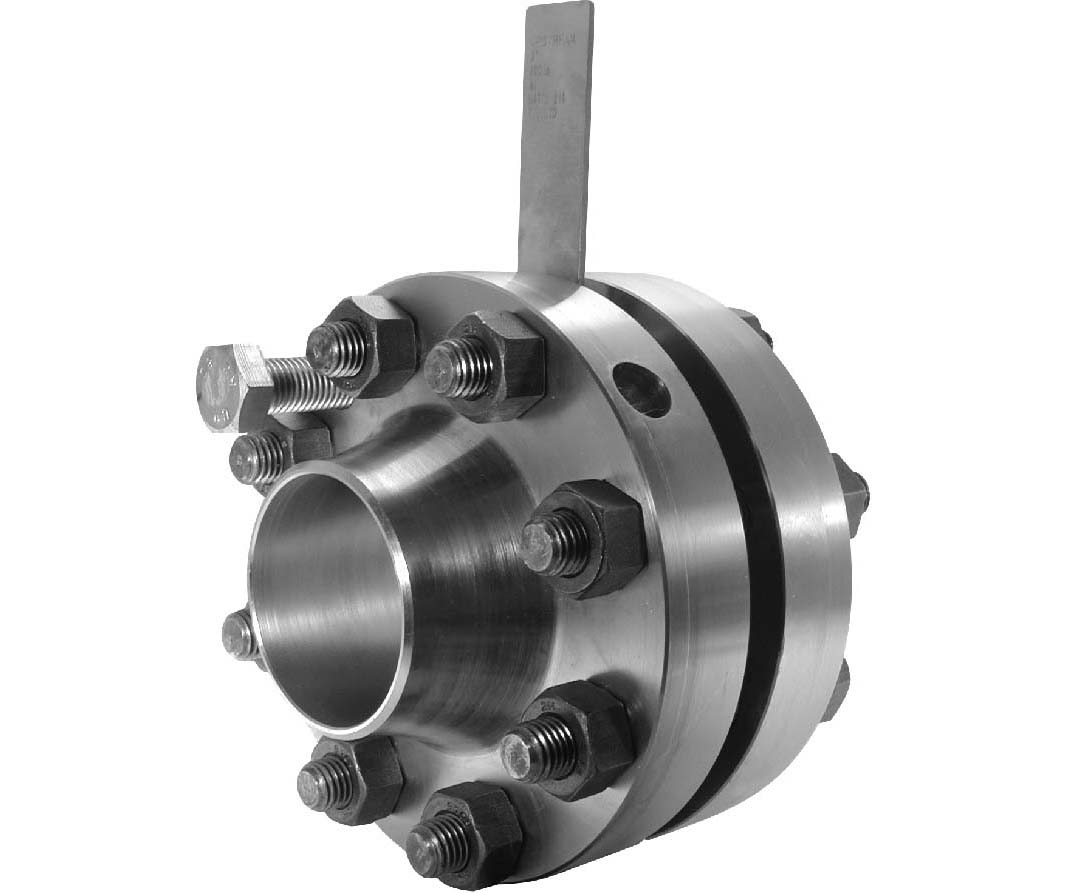

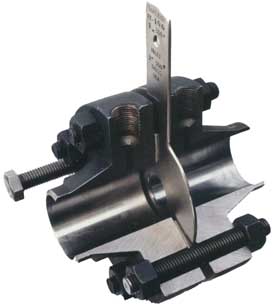

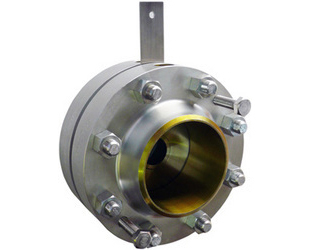

Orifice Flange
- Std: ASME, ASNI, ASTM
- OD: NPS 1
- Pressure: 150#-2500#
- Material: C.S., S.S., Alloy
- Product description: NPS 1" - 72", 150# - 2500#
PRODUCT INTRODUCTION
|
Producing Standard: |
ANSI / ASME B16.5 ANSI / ASME B16.47 ANSI / ASME B16.36 ANS I/ ASME B16.48 ANSI/ASME B16.11 MSS SP 44 JB STANDARD BS STANDARD
|
|
Corrosion Standard: |
NACE MR 0175 ISO-1516-2 |
|
Material: |
ASTM A105 ASTM A694 F42,F52,F60,F65,F70 ASTM A381 Y56/X56 ASTM A350 SA/ASTM A516 Gr. 60, 65, 70 ANSI/SUS/ AISI 304 ANSI/SUS/AISI 304L ANSI/SUS/AISI316 ANSI/SUS/AISI 316L JIS MATERIAL BS MATERIAL
|
|
Norminal Pressure |
Class 125, Class 150, Class 300, Class 400, Class 600, Class 800, Class 900, Class 1500, Class2500 |
|
Outside Diameter: |
1" To 100" |
|
Dimension Accuracy: |
+ - 1% |
|
Application: |
Gas Industry, Oil Gas Industry, Chemical Industry, Power Industry, Water Industry |
|
|
